For a free sample please contact us here.
ColorGard® Bars are 7'8" long.

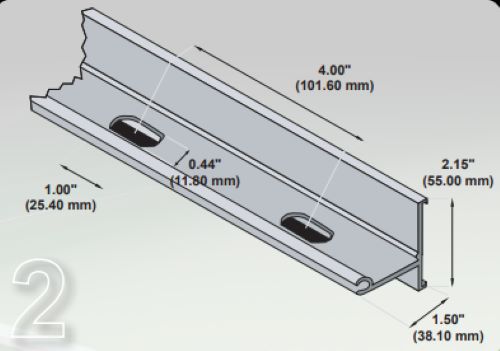

Punched S-5!® ColorGard® Bar is slotted every 4" (10.2 cm) on center for seams that are spaced accordingly (divisible by 4) and is the aluminum cross-member for the ColorGard® bar-style snow retention system. VersaClips are not needed when installing Punched ColorGard bar on panels with seams that are divisible by 4. For panels with seams that are not divisible by 4, use UNpunched bar with VersaClips.
Utilizing ColorStrips inserted into the front slot of the punched bar, the ColorGard® system will complement the color of the roof.
Includes 1 splice per bar for joining two ColorGard® Bars together.
Attach to standing seam panels with appropriate S-5!® clamp for your specific metal panel. Browse S-5!® Products Collection here for stocked clamp options.
Additional Components:
- ColorStrip (Optional inserts)
- SnoClip II (Optional-based on seam height)
- SnoClip III (Optional-based on seam height)
For detailed product information, including installation instructions, click here.
Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc. These are provided at no charge. Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects. Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively. Snow retention layouts and quotes can be obtained by completing Rocky Mountain Snow Guards' Free Layout & Quote Request Form here.
