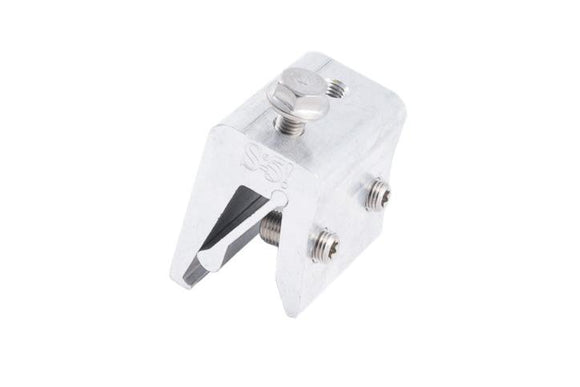

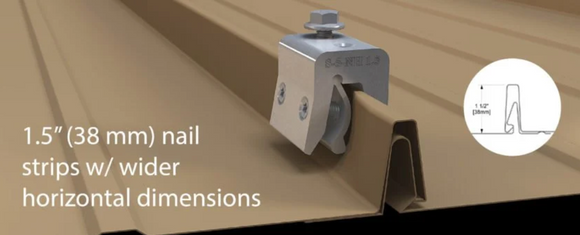

The S-5-NH1.5 ("NH" stands for Nail strip Hinge) clamp is designed specifically for 1-1/2" nail strip profiles with a wider horizontal dimension (>0.475" and up to 0.80").

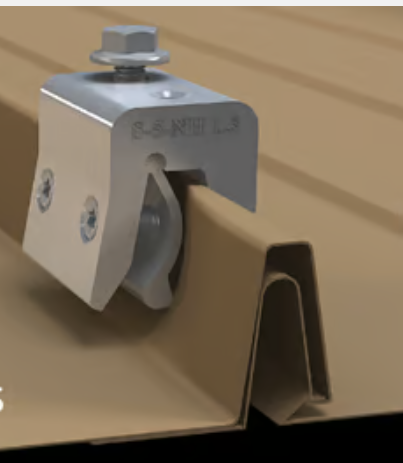

The innovative insert is a "hinge" design and features a toe to engage the female portion of the panel. The aluminum insert forms to the shape of the seam, preventing damage at the point of attachment, while offering optimal holding strength. The aluminum hinge insert is staked at one end to facilitate installation and is reversible to allow for proper fit on both wide and medium-width profiles.
Included stainless steel hardware consists of 2 setscrews and 1 M8 bolt.
Additional Product Information:
Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc. These are provided at no charge. Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects. Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively. Snow retention layouts and quotes can be obtained by completing Rocky Mountain Snow Guards' Free Layout & Quote Request Form here.
$24.95
$2.65
